Mellotron MK VI Development, page II.



to page III.

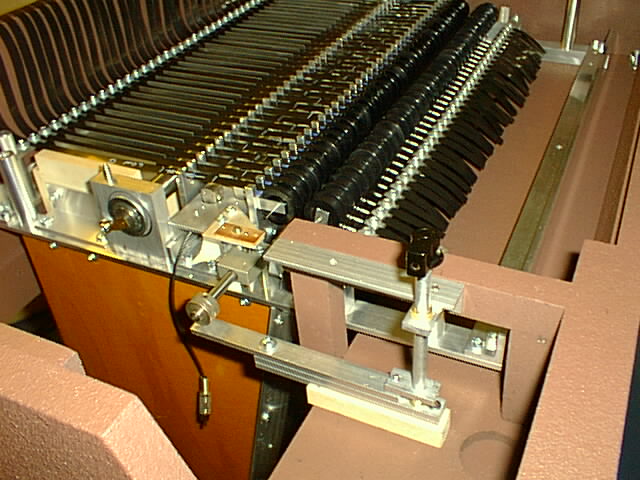

Trksel2.jpg (80280 bytes) Closeup of the new track selector mechanism.

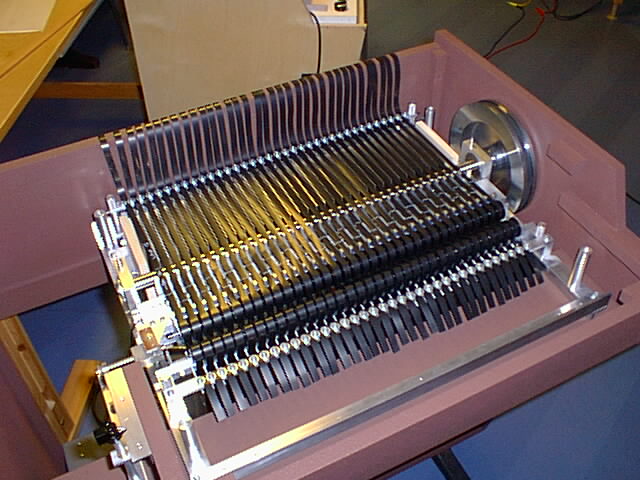

Completed main frame.

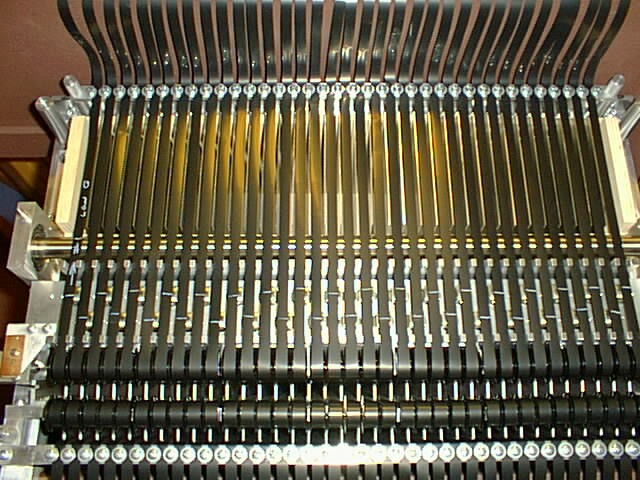

Another look inside. All of the Mk VI construction

was done with numerically controlled machining,

perhaps the most benefit going to the precision of

the mainframe and the cutting of the spill box

divider slots. accurate to .0002

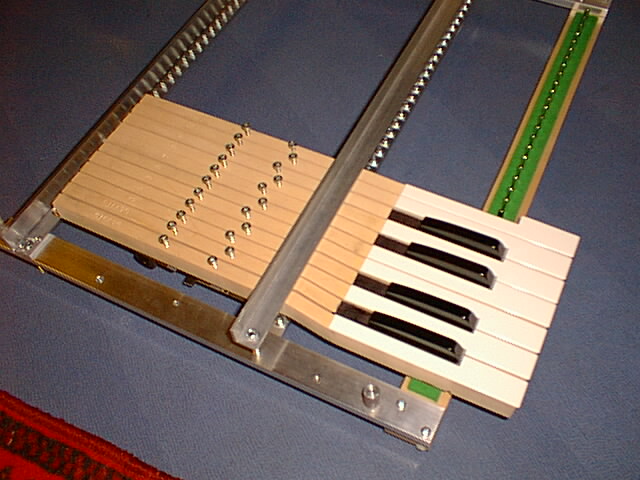

New keyboard assembly.

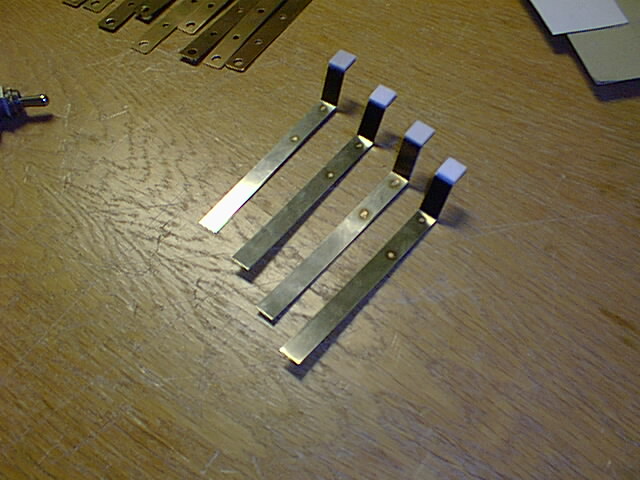

New stainless pad springs.
